Locked Offroad Shocks
2.0" Bump Stop Kit | Pinch
Travel:
Travel
Quantity:
Choose options
Travel:
Travel
Quantity:
Travel:
Travel
Quantity:
IN STOCK

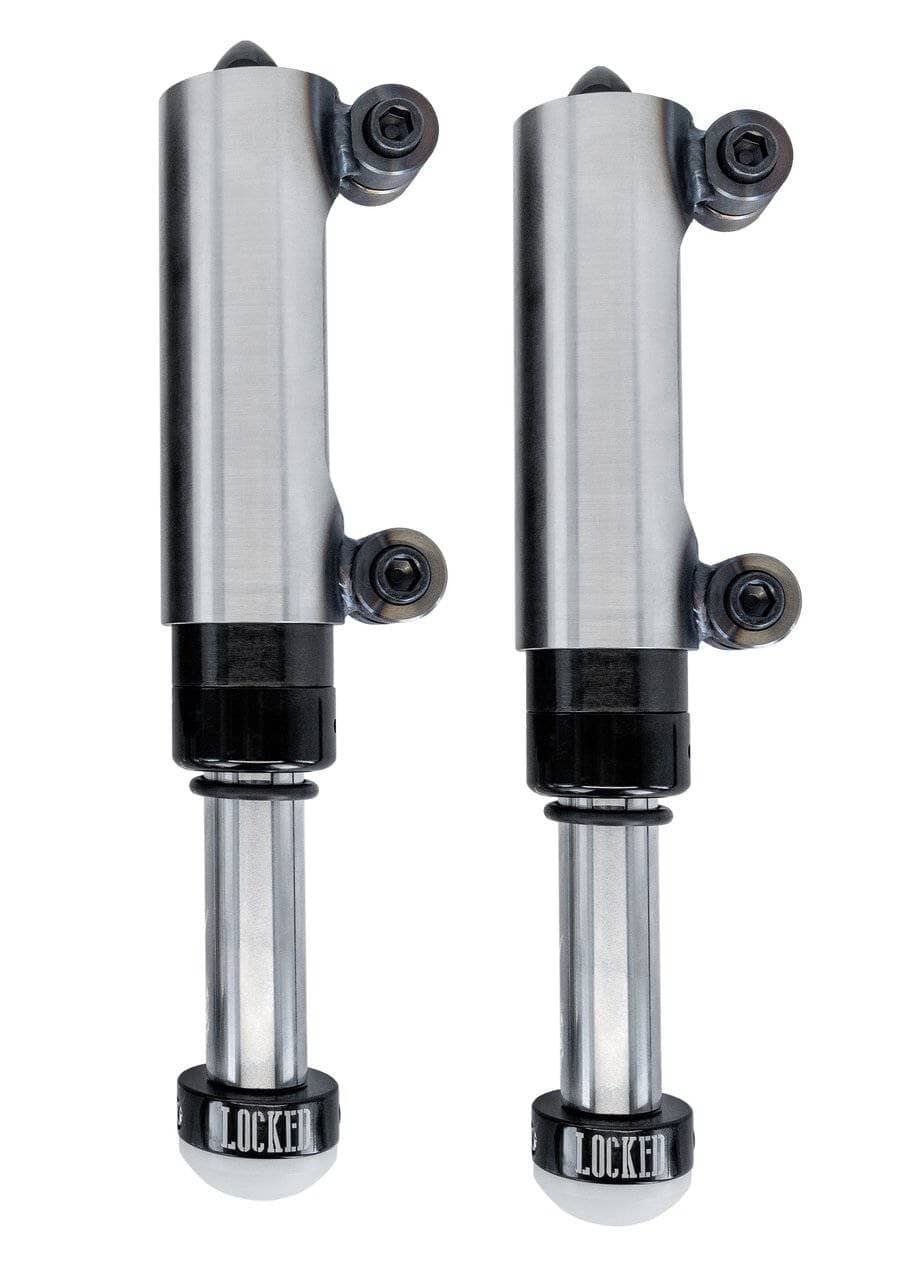

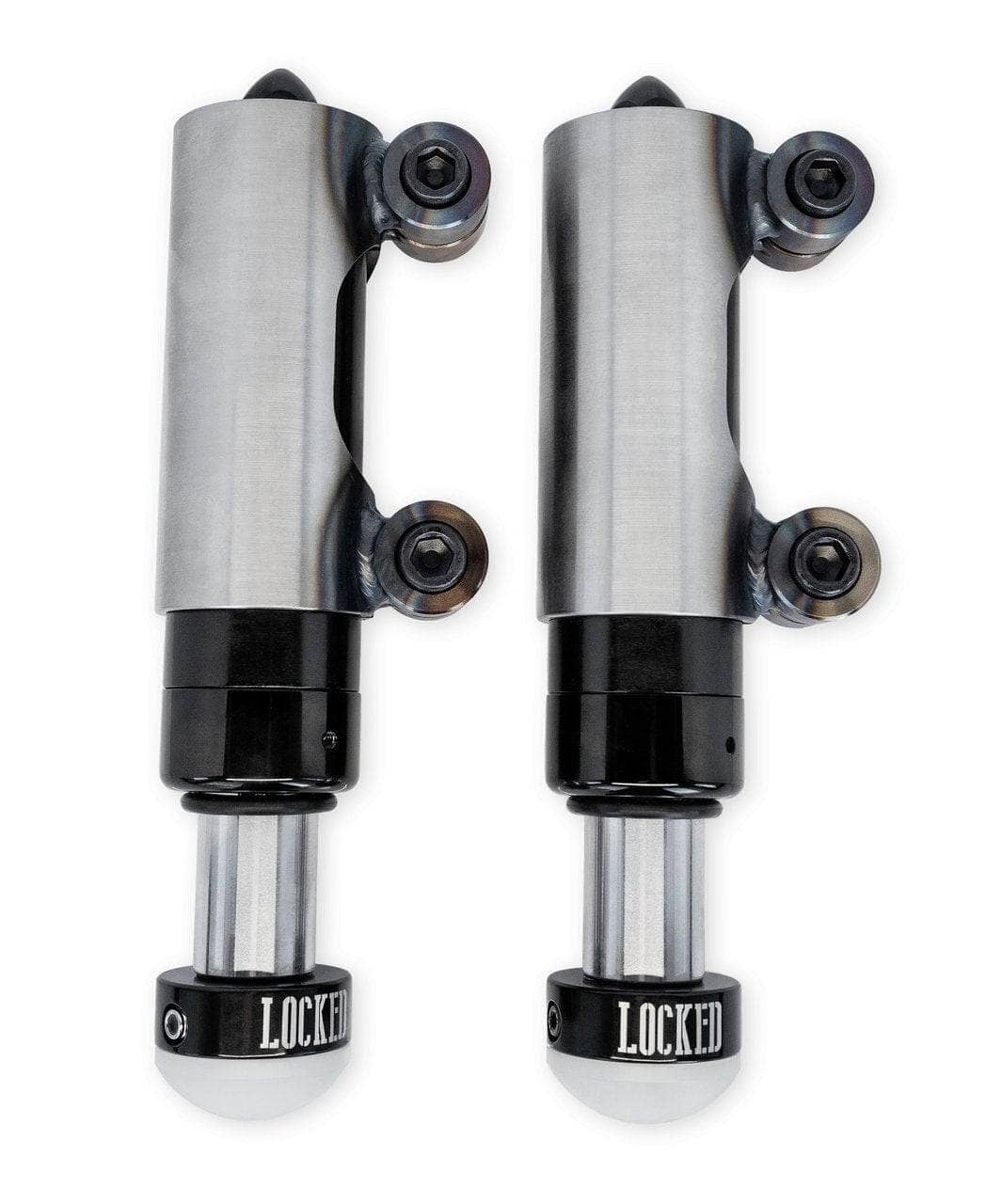

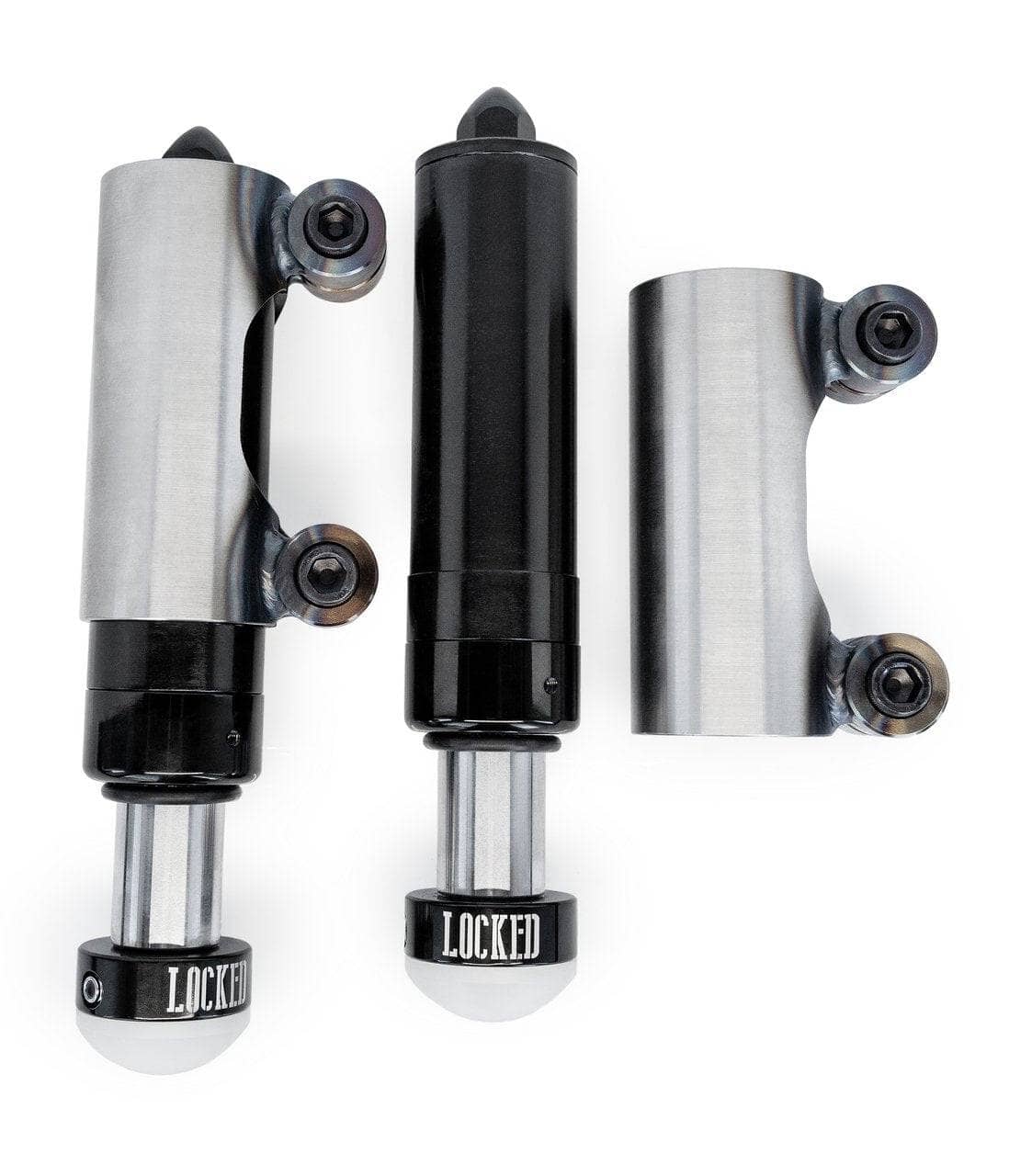

PAIR OF 2.0" BUMP STOPS – 2" & 4" TRAVEL OPTIONS
- Hydraulic bump stops
- Fully rebuildable
- Adjustable oil volume & nitrogen pressure
- Includes heavy-duty mounting sleeves
TECHNICAL SPECS:
- 2.0" Diameter Body
- 2" Stroke: Extended 11.25" | Collapsed 9.25"
- 4" Stroke: Extended 14.875" | Collapsed 10.87"
- 1.26" Diameter Shafts — Hard-chromed and mirror-polished for durability and extended seal life
- Schrader cap mounts directly to the body, not the valve, for a stronger, cleaner seal
- O-ring travel indicator tracks shaft travel in real-time
- Delrin contact pad with flushmount design prevents metal-on-metal contact and ensures silent performance
MOUNTING SLEEVES:
- Heavy-duty sleeves, weld-ready
- Can OD: 2.34" (side to side) × 3.5" (front to back)
- Built-in weld shrinkage tolerance ensures a proper fit during installation
BUILT TO PERFORM:
- Viton Seals
- 4130 Chromed & Polished Shafts
- Black Zinc-Coated Steel Bodies
- 6061 Anodized Aluminum Components
WARRANTY:
1-Year Warranty on non-wearable parts.
NOTE:
Intended for off-highway use only.
