Trail-creeper Crawl Boxes - 2.28 and 4.70 Gear Ratios for 2005–2022 Toyota Tacoma

Star Rating
out of 5
Sale price$3,293.95
Gear Ratio:

Gear Ratio

Quantity:

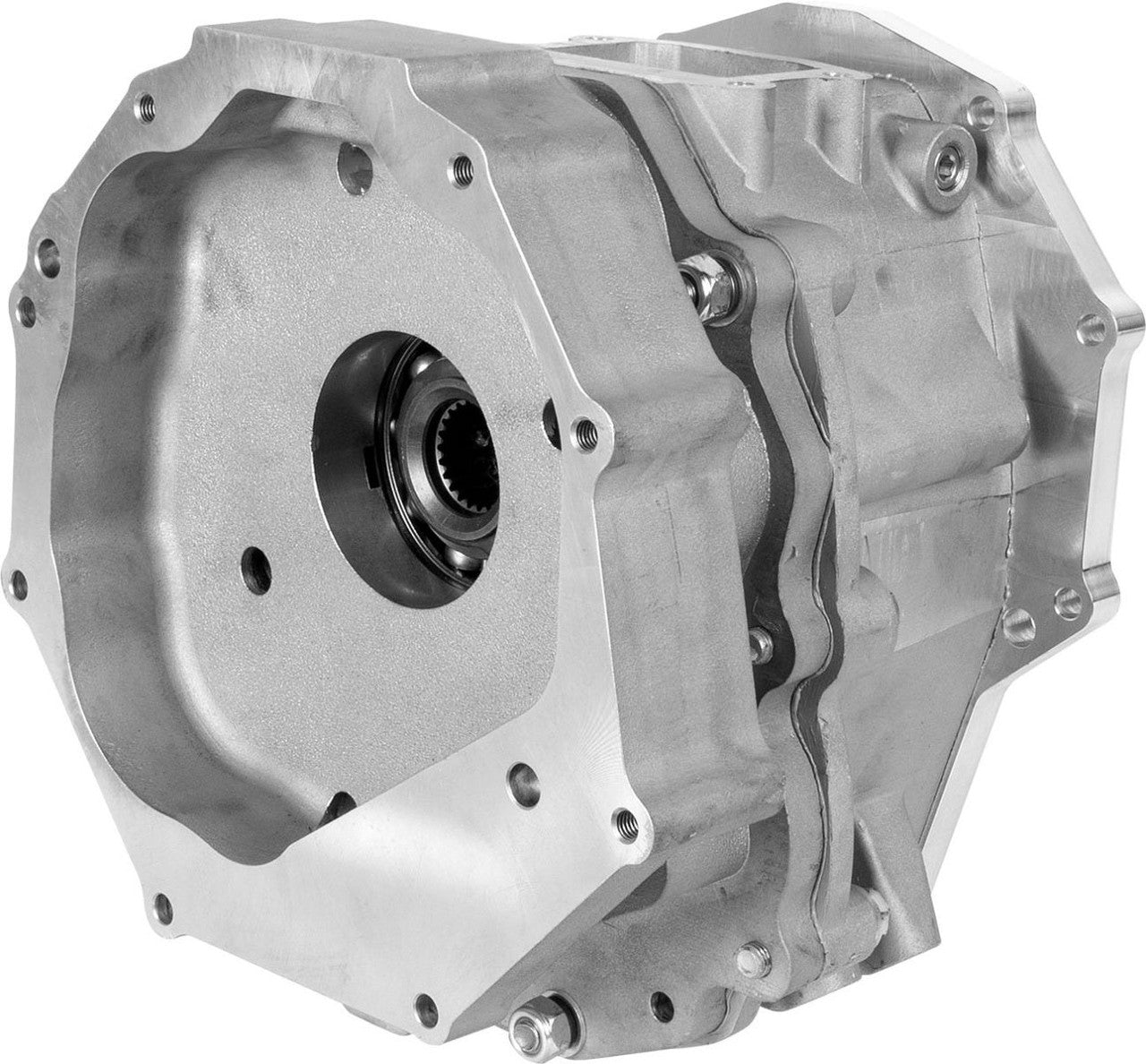

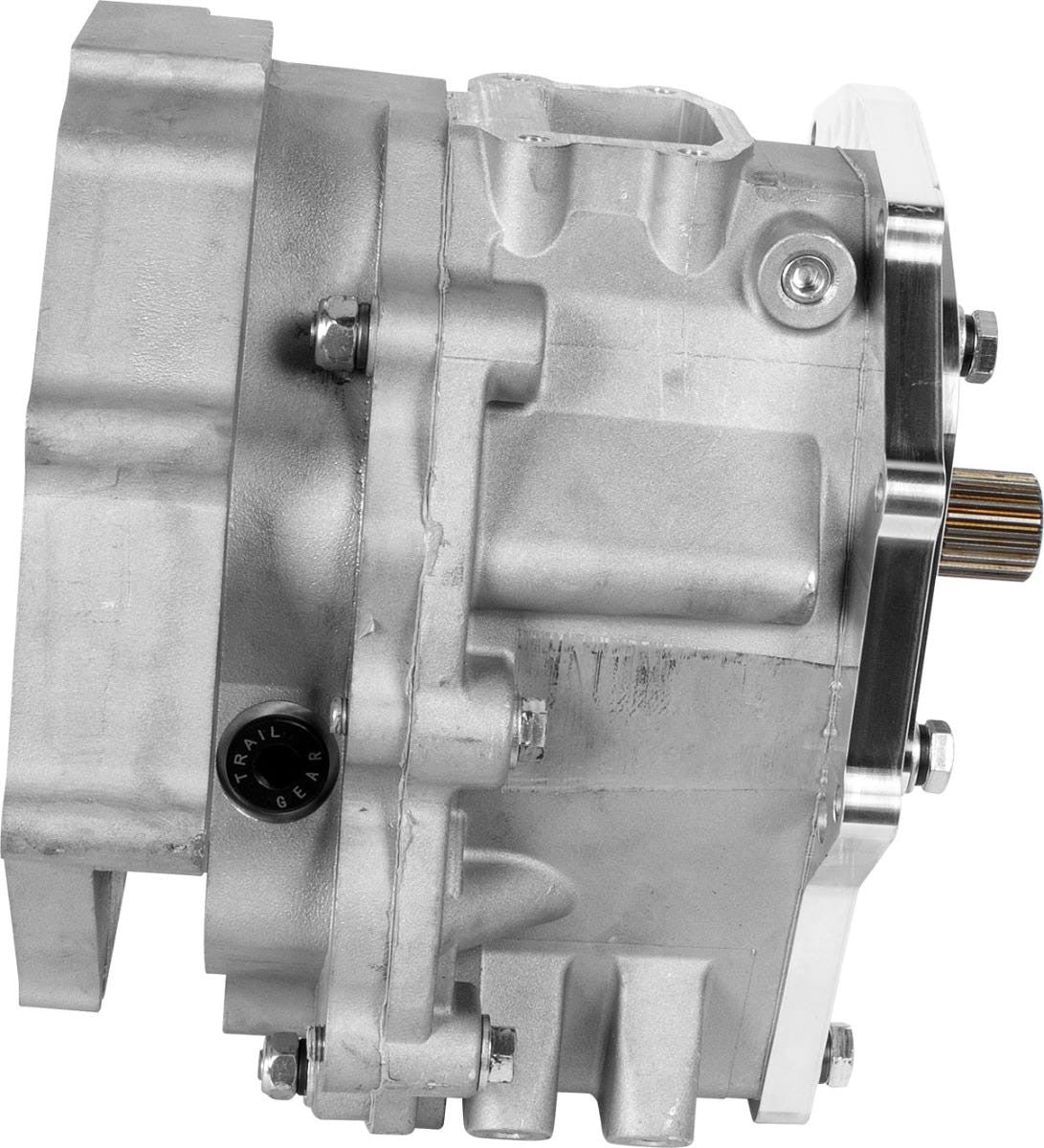

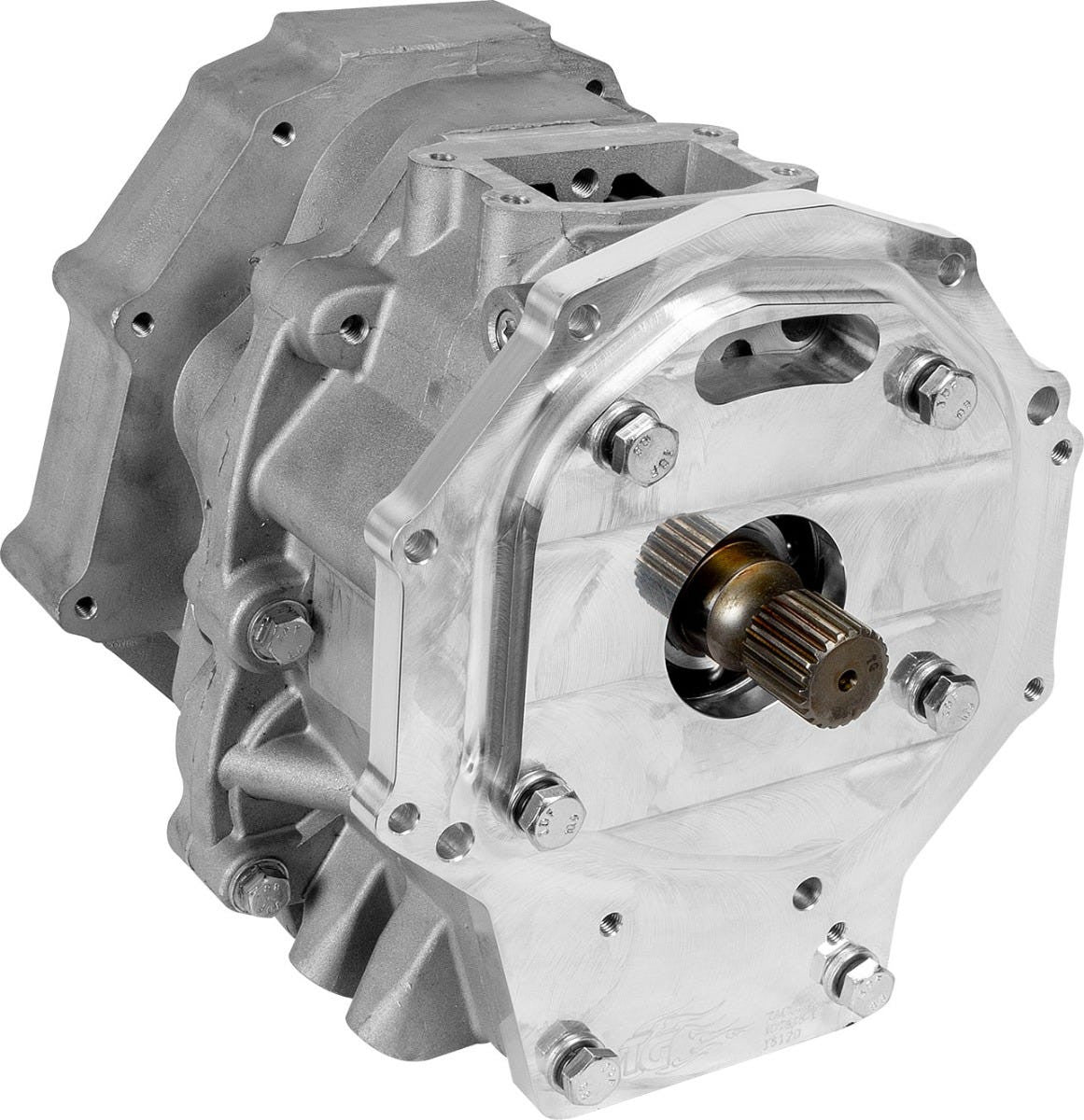

Trail-Creeper 2005-2022 Tacoma Crawl Boxes - 2.28 and 4.70 Gear Ratios This kit will enable you to install a mini truck crawl box in your Tacoma. All units are built in the USA at Trail-Gear headquarters. Shifter Kit included. TOYOTA TACOMA (2005-2022) 2005 Toyota Tacoma 2006 Toyota Tacoma 2007 Toyota Tacoma 2008 Toyota Tacoma 2009 Toyota Tacoma 2010 Toyota Tacoma 2011 Toyota Tacoma 2012 Toyota Tacoma 2013 Toyota Tacoma 2014 Toyota Tacoma 2015 Toyota Tacoma 2016 Toyota Tacoma 2017 Toyota Tacoma 2018 Toyota Tacoma 2019 Toyota Tacoma 2020 Toyota Tacoma 2021 Toyota Tacoma 2022 Toyota Tacoma TOYOTA TUNDRA (2005-2009) 2005 Toyota Tundra 2006 Toyota Tundra 2007 Toyota Tundra 2008 Toyota Tundra 2009 Toyota Tundra TOYOTA FJ CRUISER (2007-2014) 2007 Toyota FJ Cruiser 2008 Toyota FJ Cruiser 2009 Toyota FJ Cruiser 2010 Toyota FJ Cruiser 2011 Toyota FJ Cruiser 2012 Toyota FJ Cruiser 2013 Toyota FJ Cruiser 2014 Toyota FJ Cruiser TOYOTA 4RUNNER (2003-2009) 2003 Toyota 4Runner 2004 Toyota 4Runner 2005 Toyota 4Runner 2006 Toyota 4Runner 2007 Toyota 4Runner 2008 Toyota 4Runner 2009 Toyota 4Runner

  • Transfer cases are made from two basic sections; the reduction section and the 4WD section. To build a dual transfer case, two reduction boxes are bolted back-to-back with a dual case adapter. These two are then bolted to a 4WD section. Using the Tacoma-specific adapters, this crawl box is ready to bolt onto the front of a Tacoma Chain drive transfer case. In addition, this kit also comes with the necessary adapter and hardware to bolt a dual case to the back of your Tacoma transmission. Units are completely rebuilt and inspected. The low range gear ratio is 4.70 or 2.28. Floorboard and driveshaft modifications are required for dual transfer case installation. No core charge. One-year warranty. This adapter kit is compatible with any vehicle with a Toyota A750F Transmission and several other applications, please see the application data tab for full application information.
  • With this 4.70:1 or 2.28:1 crawl box installed, your transfer case will now have 4 speeds. Having 4 speeds available allows the driver to select the proper ratio to provide the optimal torque and control for any terrain.
  • Assuming a 4.88 ring and pinion along with a 3.52:1 transmission first gear, a dual transfer case with 4.70 gear option will provide a double low final drive ratio of 207:1 and the final drive ratio with 2.88 gear option is 101:1.

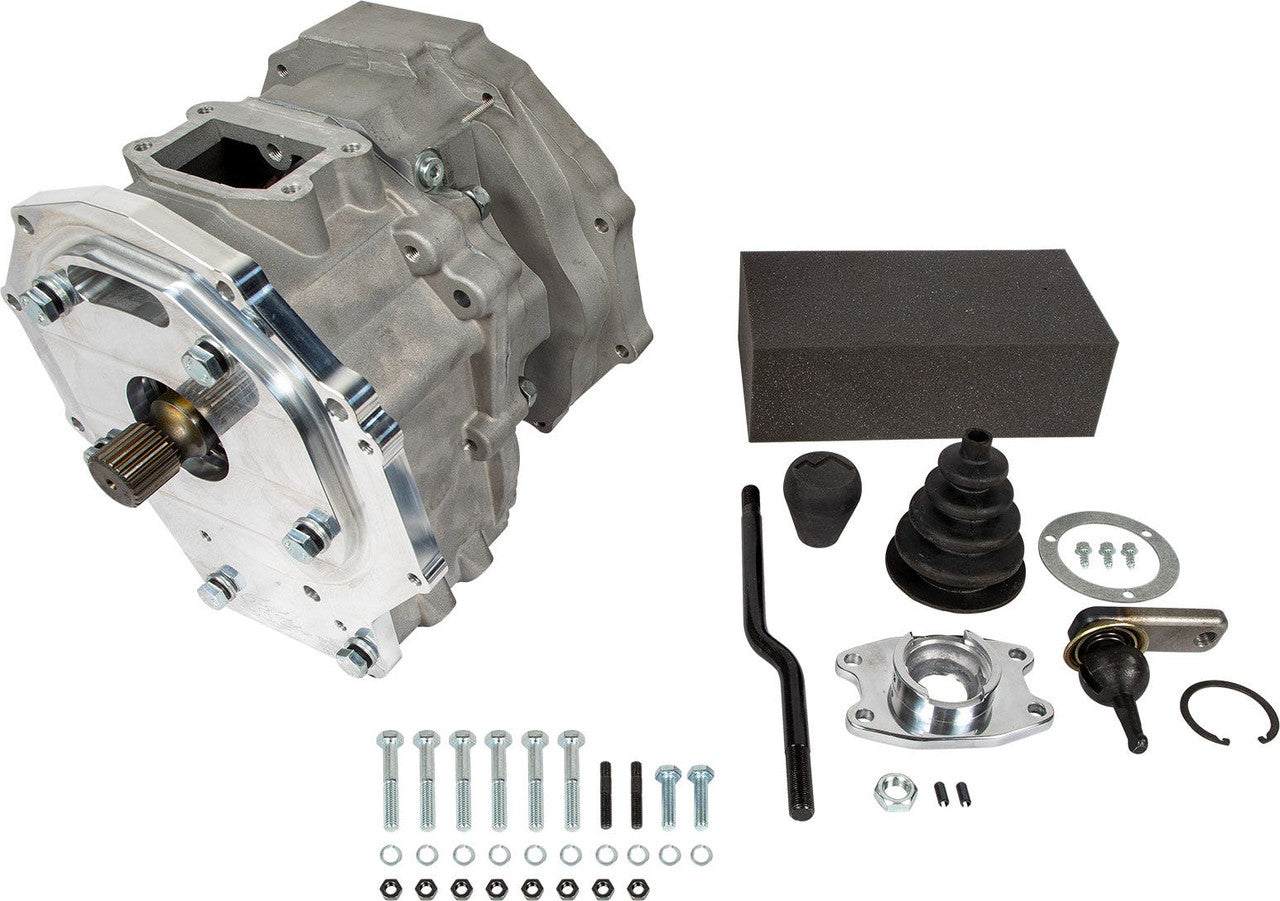

  • Includes all hardware required for installation.
