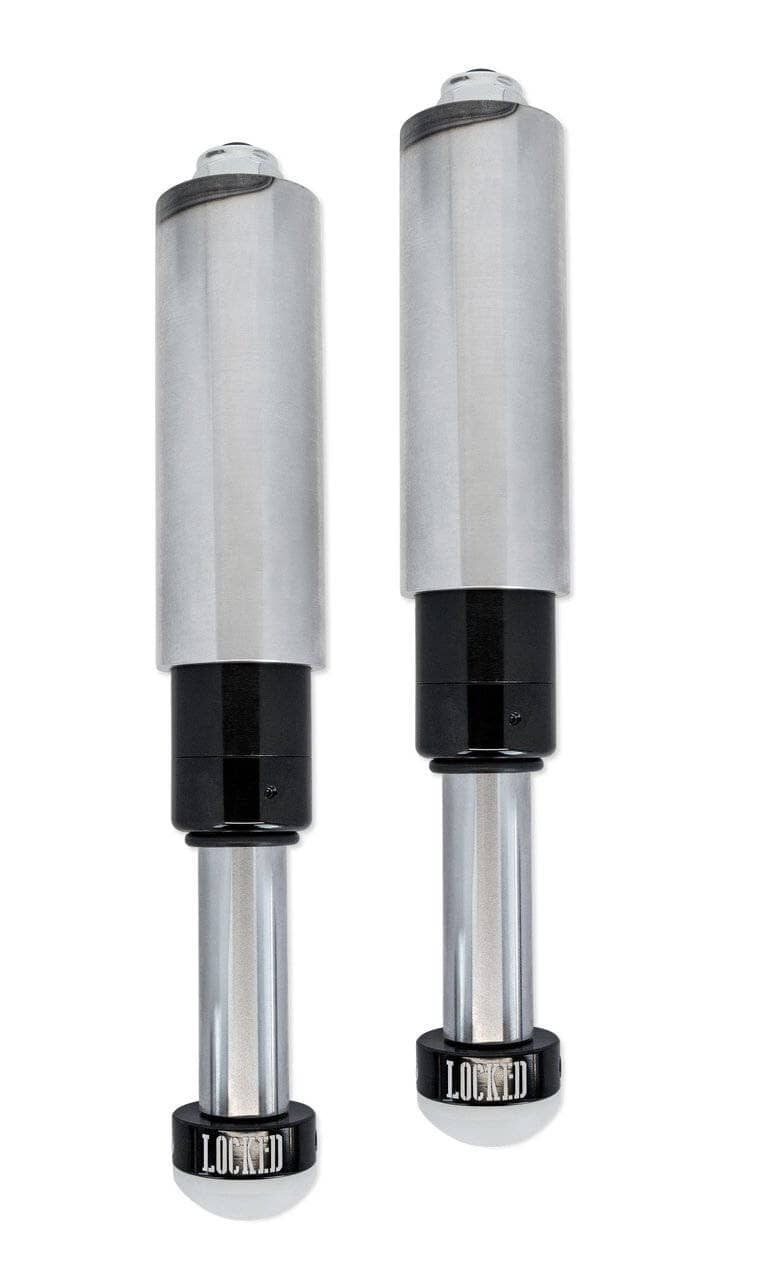

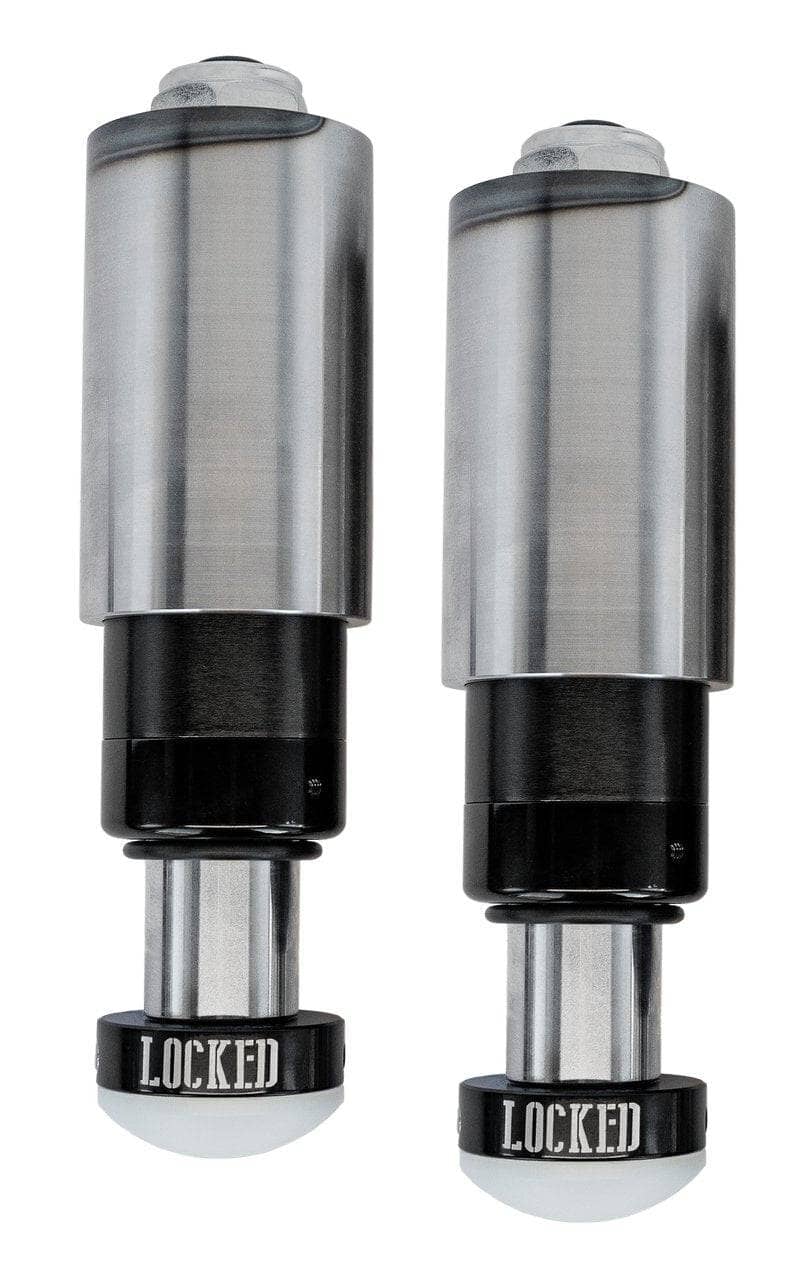

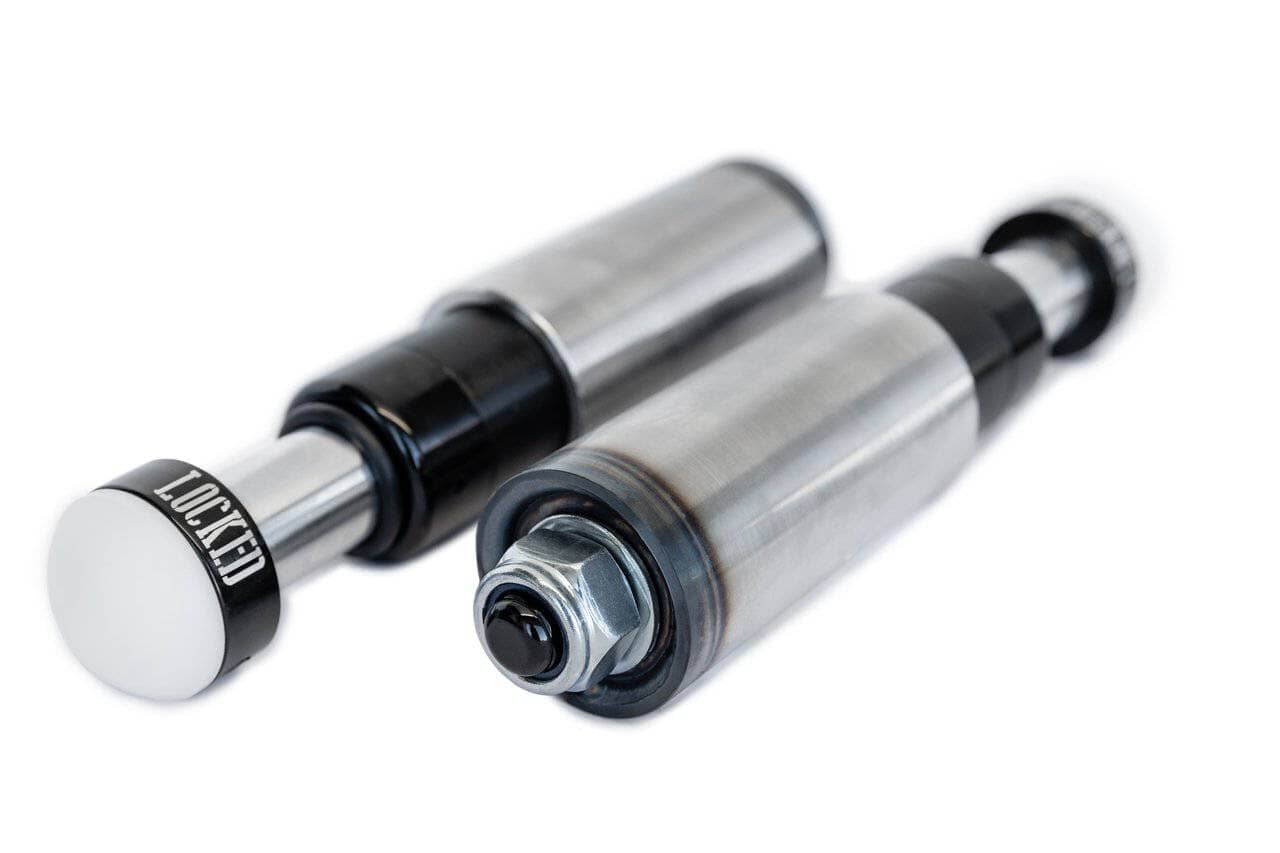

PAIR OF 2.0" BUMP STOPS – 2" & 4" TRAVEL OPTIONS
- Hydraulic bump stops
- Fully rebuildable
- Adjustable oil volume & nitrogen pressure
- Includes mounting sleeves
TECHNICAL SPECS:
- 2.0" Diameter Body
- 2" Stroke: Extended 11.75" | Collapsed 9.75"
- 4" Stroke: Extended 15.5" | Collapsed 11.5"
- 1.26" diameter shafts – Hard-chromed and mirror-polished for rust prevention and extended seal life
- Schrader cap mounts directly to the body, not the valve, for a stronger, cleaner seal
- O-ring travel indicator shows real-time shaft travel
- Delrin contact pad uses a flushmount design for silent performance and no metal-on-metal contact
MOUNTING SLEEVES:
- Heavy-duty, weld-ready sleeves
- Can Outer Diameter: 2.44"
- Pin-style design offers 360° support without pinch points
- Built-in weld shrinkage tolerance ensures proper fit
- Laser-cut indexing holes securely lock bump stop in place
BUILT TO PERFORM:
- Viton Seals
- 4130 Chromed & Polished Shafts
- Black Zinc-Coated Steel Bodies
- 6061 Anodized Aluminum Components
WARRANTY:
1-Year Warranty on non-wearable part
NOTE:
Intended for off-highway use only.
