Locked Offroad Shocks
2.0" Bump Stop Kit | Threaded
Travel:
Travel
Quantity:
Choose options
Travel:
Travel
Quantity:
Travel:
Travel
Quantity:
IN STOCK

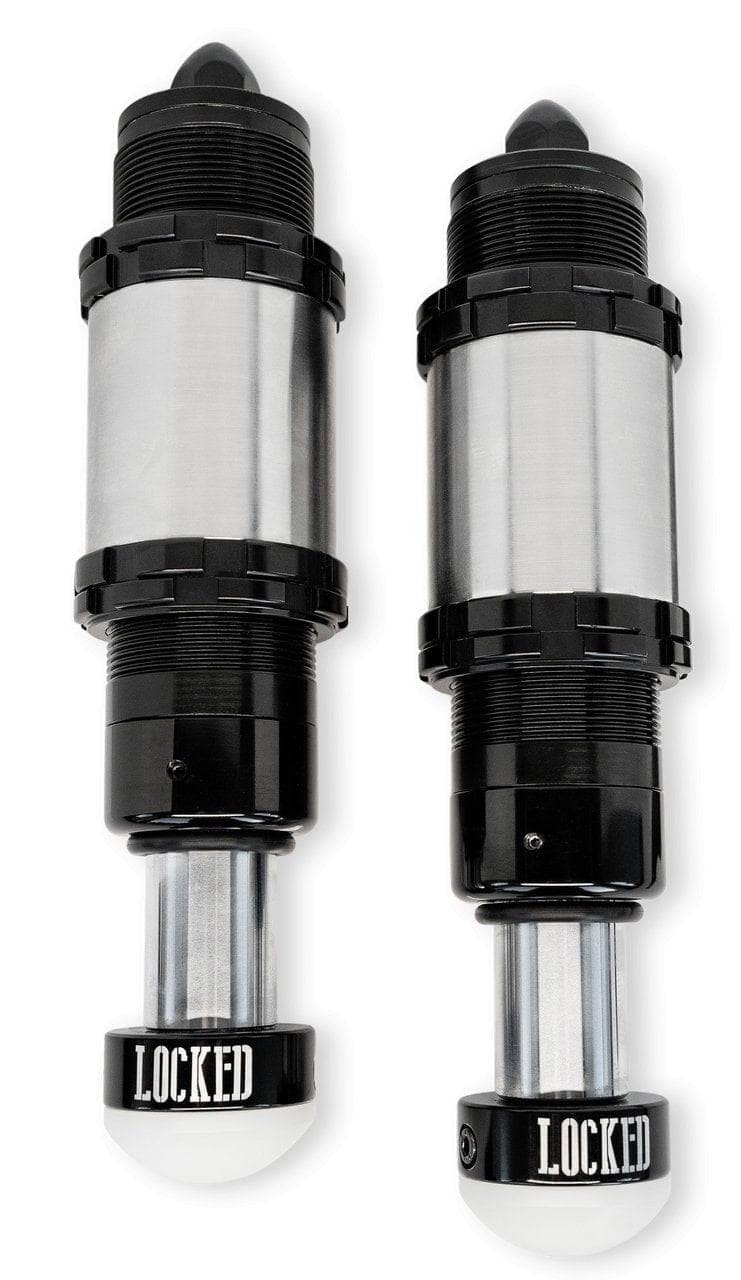

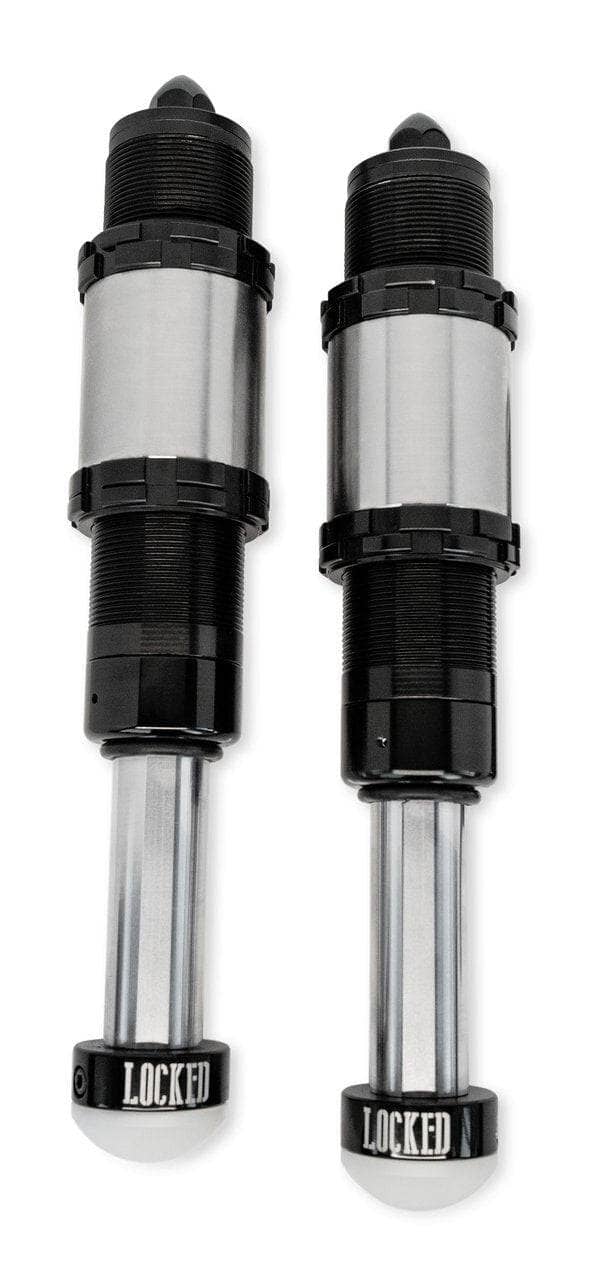

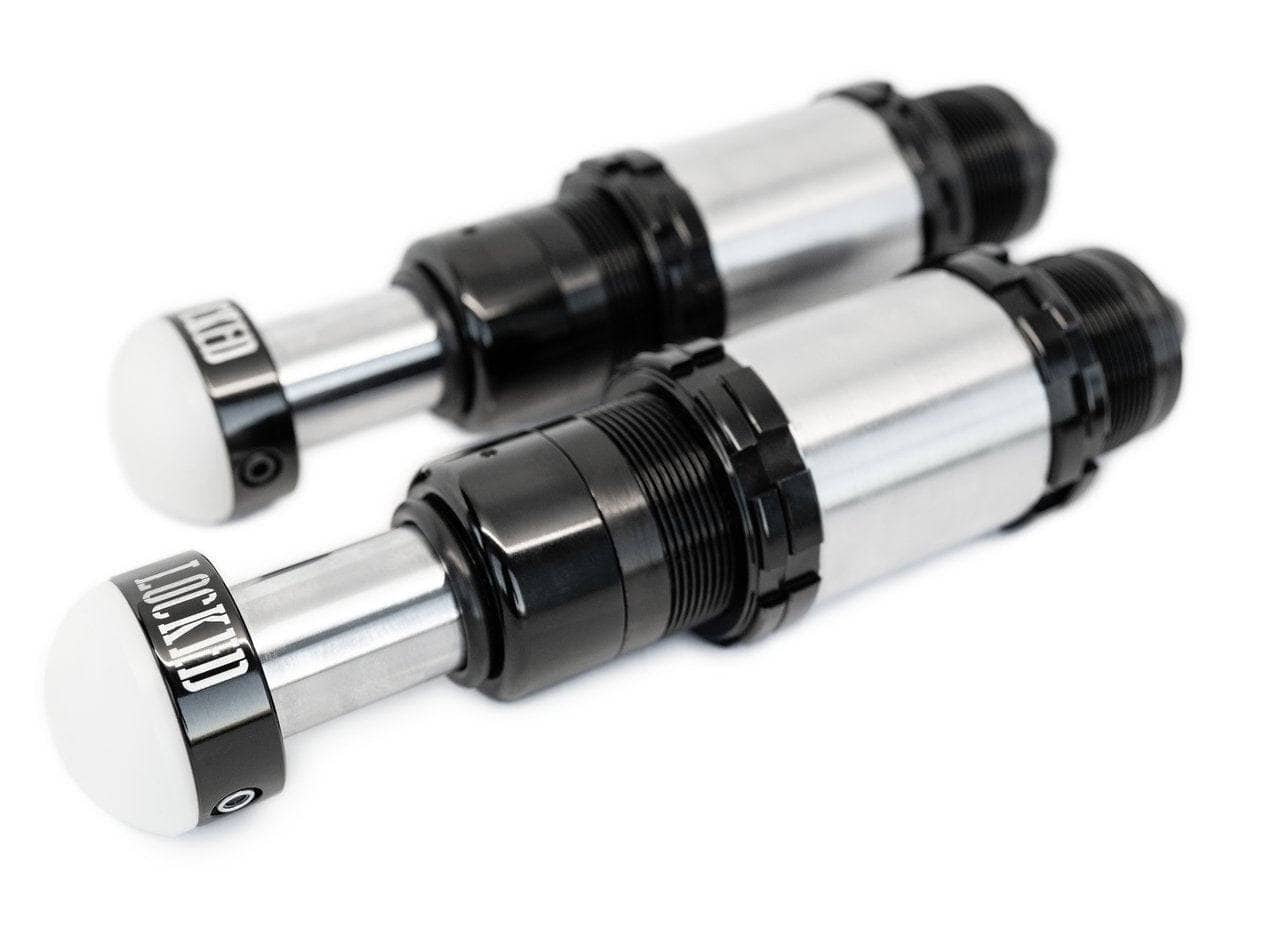

PAIR OF 2.0" THREADED BUMP STOPS – 2" & 4" TRAVEL OPTIONS
- Hydraulic bump stops
- Fully rebuildable
- Adjustable oil volume & nitrogen pressure
- Includes threaded mounting sleeves
- 2 sets of locking rings per bump stop
TECHNICAL SPECS:
- 2.0" Diameter Body
- 2" Stroke: Extended 11.75" | Collapsed 9.75"
- 4" Stroke: Extended 14.75" | Collapsed 10.75"
- 1.26" diameter shafts – Hard-chromed and mirror-polished for rust prevention and extended seal life
- Schrader cap mounts directly to the body, not the valve, for a stronger, cleaner seal
- O-ring travel indicator shows real-time shaft travel
- Delrin contact pad uses a flushmount design for silent performance and no metal-on-metal contact
MOUNTING SLEEVES:
- Heavy-duty threaded sleeves, weld-ready
- Threaded Can OD: 2.52" | Height: 2.55"
- Total OD with lock rings: 2.72"
- 360° clamping support — no pinch points like traditional cans
- Built-in weld shrinkage tolerance ensures proper fit
BUILT TO PERFORM:
- Viton Seals
- 4130 Chromed & Polished Shafts
- Black Zinc-Coated Steel Bodies
- 6061 Anodized Aluminum Components
WARRANTY:
1-Year Warranty on non-wearable part
NOTE:
Intended for off-highway use only.
