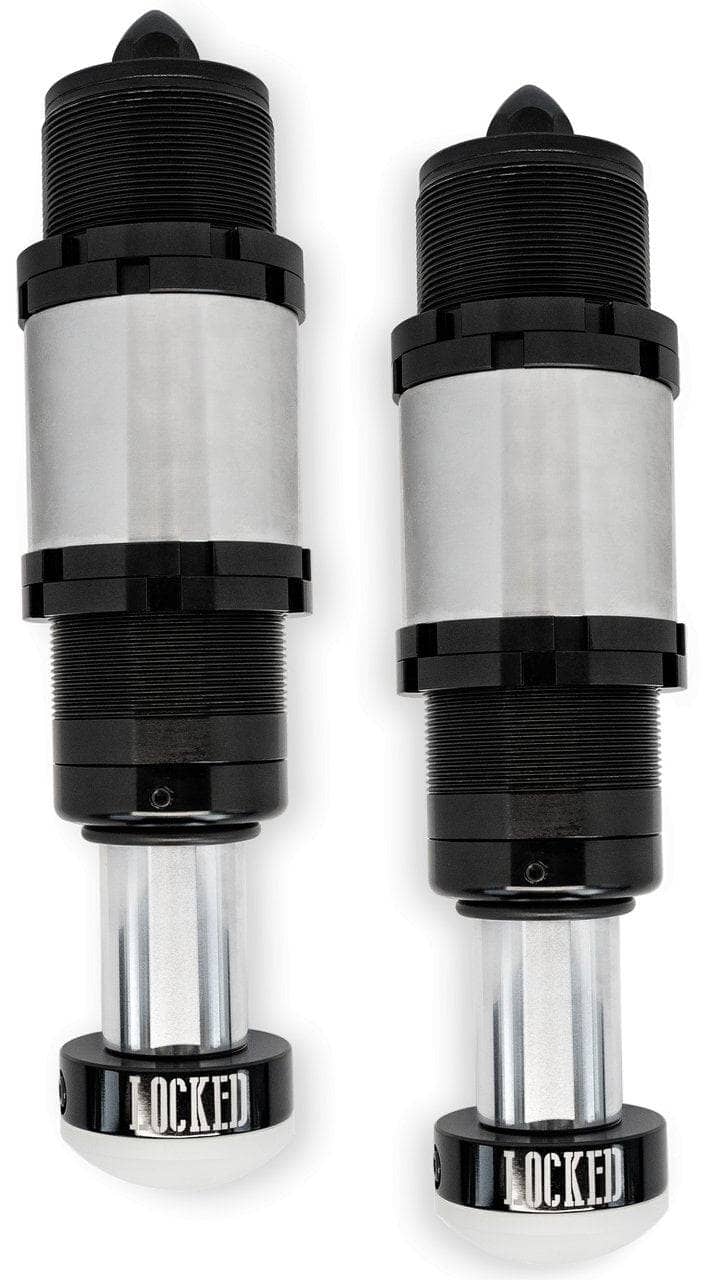

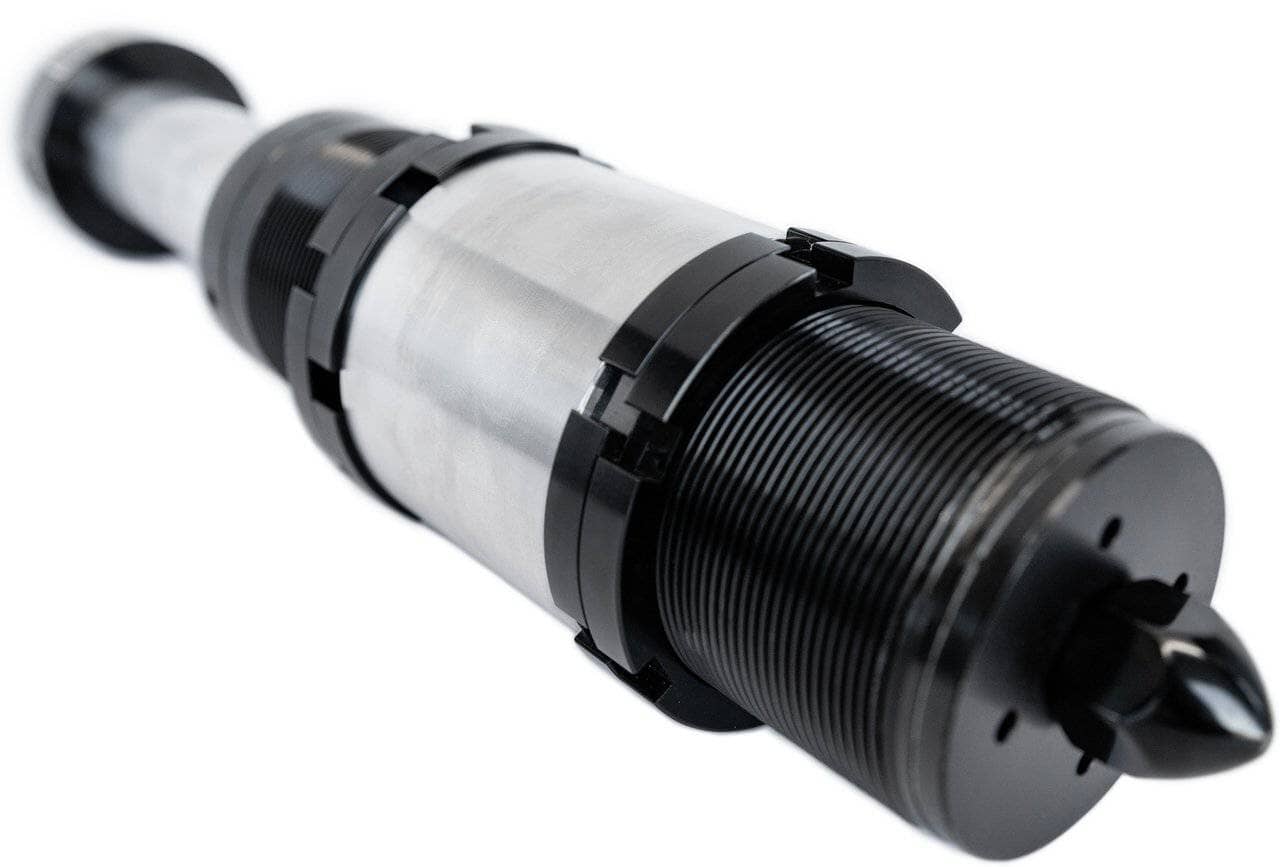

2.5" Bump Stop Kit | Threaded
2.5" Bump Stop Kit | Threaded
2.5" Bump Stop Kit | Threaded

Locked Offroad Shocks

2.5" Bump Stop Kit | Threaded

Star Rating
out of 5
Sale price$599.99
Travel:

Travel

Quantity:

IN STOCK

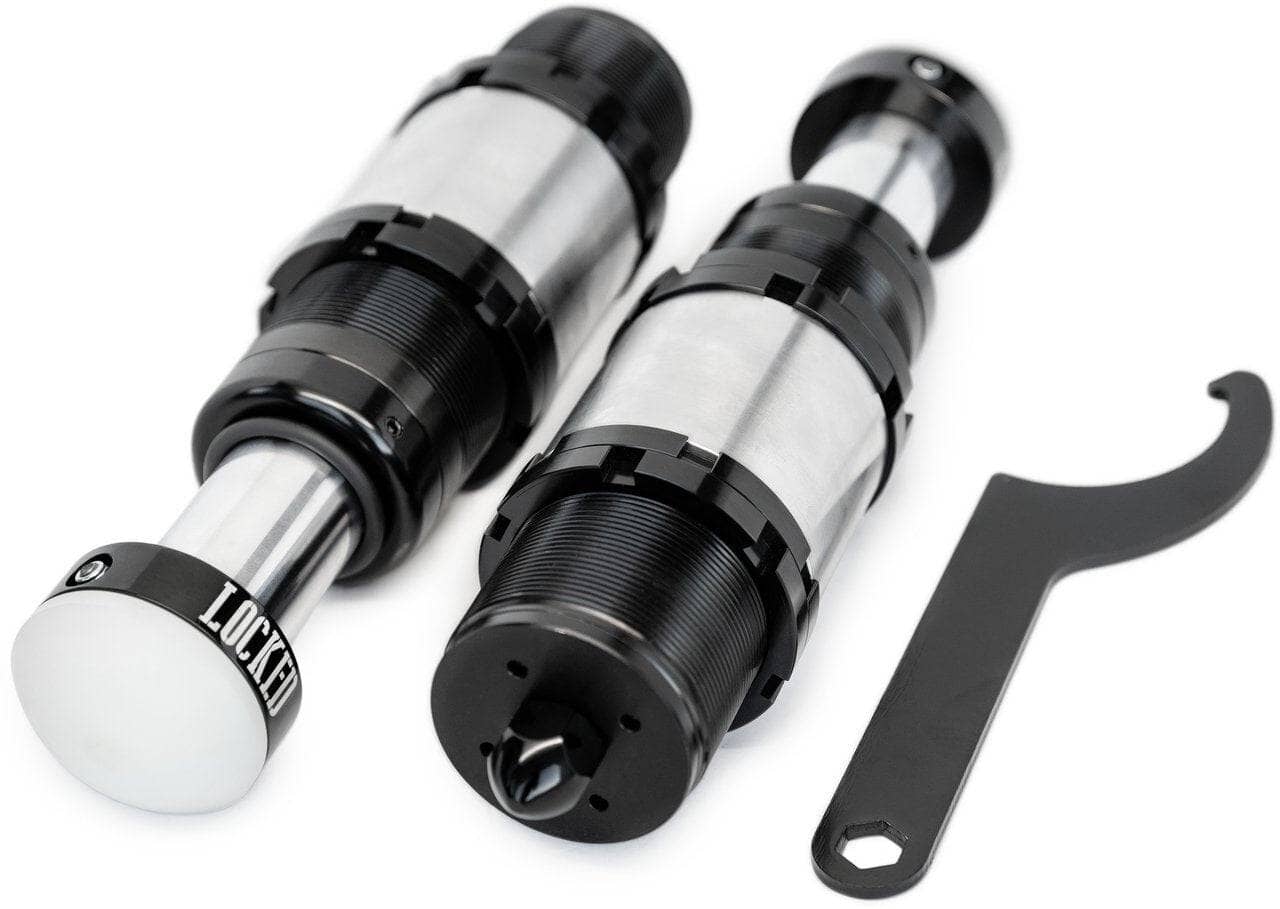

INCLUDES:

  • (2) 2.5" Bump Stops
  • (2) Threaded Mounting Sleeves (pin-style also available)
  • (2) Sets of Locking Rings per Bump Stop

TECHNICAL SPECS:

  • 2.5" Diameter Body
  • 1.58" Hard-Chromed Shaft – Rust-resistant and self-cleaning with a mirror-polished finish for extended seal life
  • Travel Options:
    • 2.5" Stroke – Extended: 12.875" | Collapsed: 10.375"
    • 4" Stroke – Extended: 14.75" | Collapsed: 10.75"
  • Integrated Schrader Cap Mounts directly to the body—not the valve—for a stronger, cleaner seal
  • Travel Gauge O-Ring on shaft for easy stroke reference
  • Secure Indexing Pin prevents outer tube pinching during compression
  • Delrin Contact Pad with flush-mount design eliminates metal-on-metal contact for quieter operation

MOUNTING SLEEVES:

  • Threaded Design for added adjustability
  • 360° Tube Retention – No pinch points like traditional cans
  • Weld-Ready – Designed to allow for shrinkage during fabrication
  • Outer Diameter (Can Only): 3.03"
  • Outer Diameter (With Lock Rings): 3.22"

BUILT TO PERFORM

  • Viton Seals
  • 4130 Chromed & Polished Shafts
  • Black Zinc-Coated Steel Shock Bodies
  • 6061 Anodized Aluminum Components

WARRANTY

1-Year Warranty on non-wearable parts. Proper installation is required to maintain coverage.


NOTE

Intended for off-highway use only.
