Spindle Gusset Kit for 2005–2023 Toyota Tacoma

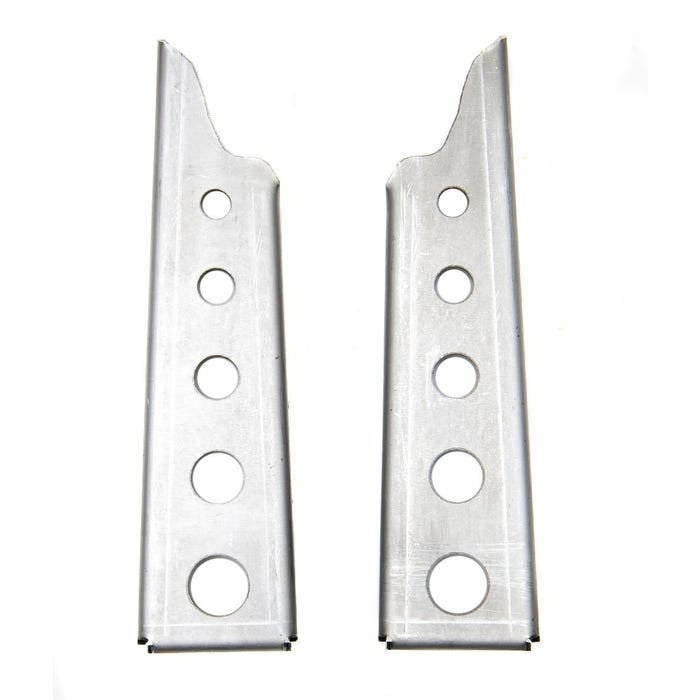

Toyota Spindle Gusset Kit (set of RH and LH) Welding is required for installation. Toyota Vehicles Factory Wheel Specs (1995-2014) 2005-2014 Toyota Tacoma 6-Lug Model - 2wd & 4wd Factory 17×7.50 Wheel Offset = +30.00 mm - Back Space = 5.50" Inches Factory TRD Sport Alloy 17×7.50 Wheel Offset = +30 mm - Back Space = 5.50" Inches Factory TRD Off-Road 16×7.00 Wheel Offset = +32 mm - Back Space = 5.25" Inches 1995.5-2004 Toyota Tacoma 6-Lug Model - 2wd & 4wd Factory 16×8.0 Wheel Offset = +1.00 mm - Back Space = 4.54" Inches 1999-2006 Toyota Tundra - 2wd & 4wd Factory 16×7.0 Wheel Offset = +15.00 mm - Back Space = 4.50" Inches Factory 17×7.5 Wheel Offset = +18.00 mm - Back Space = 5.00" Inches Lug Pattern is 6 x 139mm Hub Bore Diameter = 106mm 2007+ Toyota Tundra - 2wd & 4wd Factory 17×8.0 Wheel Offset = +50 mm - Back Space = 6.50" Inches Factory 18×8.0 Wheel Offset = +60 mm - Back Space = 6.85" Inches Factory 20×8.0 Wheel Offset = +60 mm - Back Space = 6.85" Inches Lug Pattern is 5 x 150mm Hub Bore Diameter = 110mm Weld-on install Sold as a pair See "Item Description" tab for wheel specs 2005+ Toyota Tacoma 2003+ Toyota 4Runner 2007-2014 Toyota FJ Cruiser

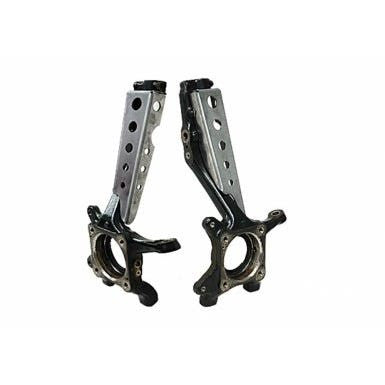

• Don’t get stuck out on the trail with a damaged spindle! All-Pro's Toyota Spindle Gussets will reinforce the upright section of the weak factory spindle and help prevent bending or breaking out on the trail. If you wheel your FJ Cruiser, 05+ Tacoma, or 03+ 4Runner hard, you need these gussets. Though other manufacturers sell similar gussets, the exclusive All-Pro design is the only one that allows you to retain your factory sway bar for safe handling on the road.
• NOTES:
• Compatible with wheels with up to 4.75" backspacing only. (Wheel spacers are required for wheels with more than 4.75" backspacing.)
• Specifications:
• Application Data:
• Instructions:
